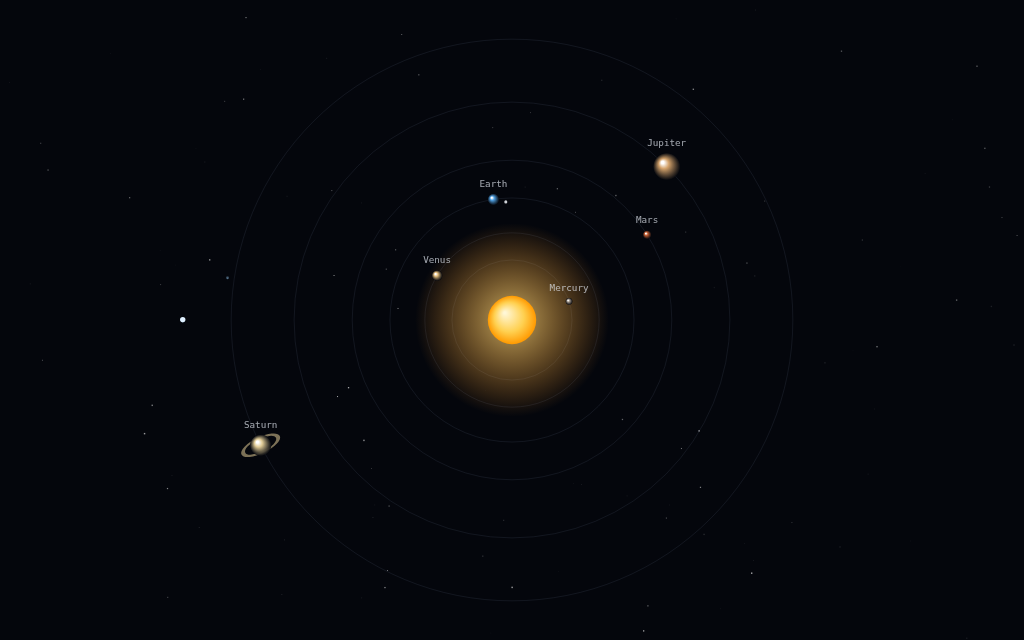

RUNS ✓2.5D ellipse + z-sortingSaturn ring, moon, labels
Complete and quietly sophisticated — planets pass in front of and behind the sun via depth sorting nobody asked for.
Overview › Physics Lab › R5
Physics Lab · archive round
R5 · Creative coding: an animated solar system
Archive round — this round predates the blind-first layout, so answers appear with model names attached. Newer rounds keep the models anonymous until you reveal them.
Scores on this page are the original editorial 0–10 ratings from the 2026-07-17 write-up (writing / art-direction / runtime quality) — not blind rubric scores against a documented gold answer, which is how R31 onward are scored. The underlying answers are unchanged from that write-up.
Show task
An animated 2D solar system: glowing sun, 6 planets with distinct colors/orbits/speeds, at least one moon, faint orbit rings, starfield, planet labels. Starts immediately, runs forever, NO user input.
The answers

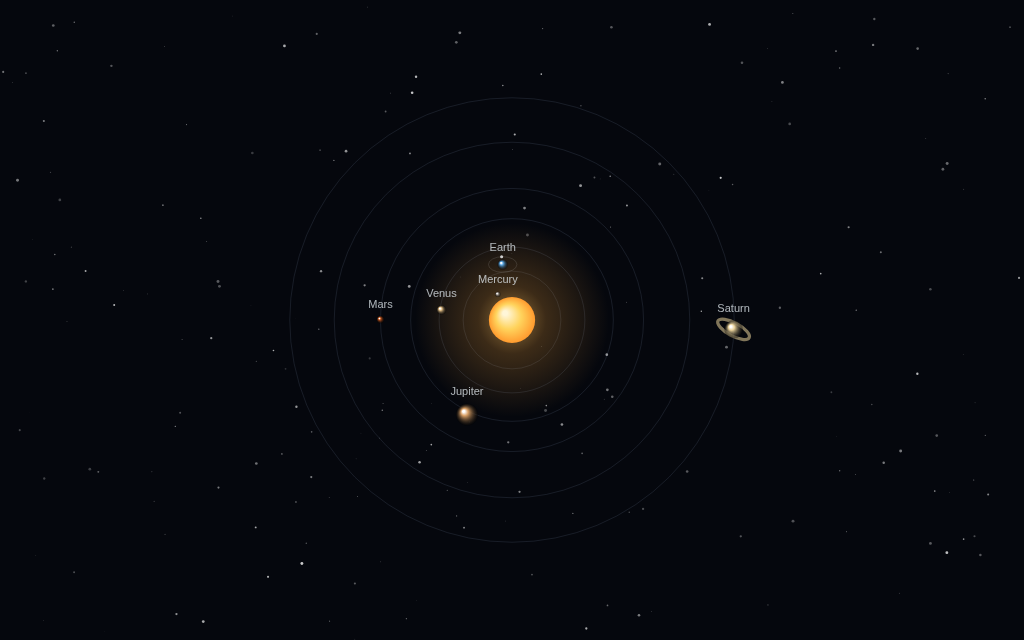

RUNS ✓bonus comet w/ tail on eccentric orbit
Spec-complete plus an uninvited comet. Charm counts; so does the fact that everything ran this time.

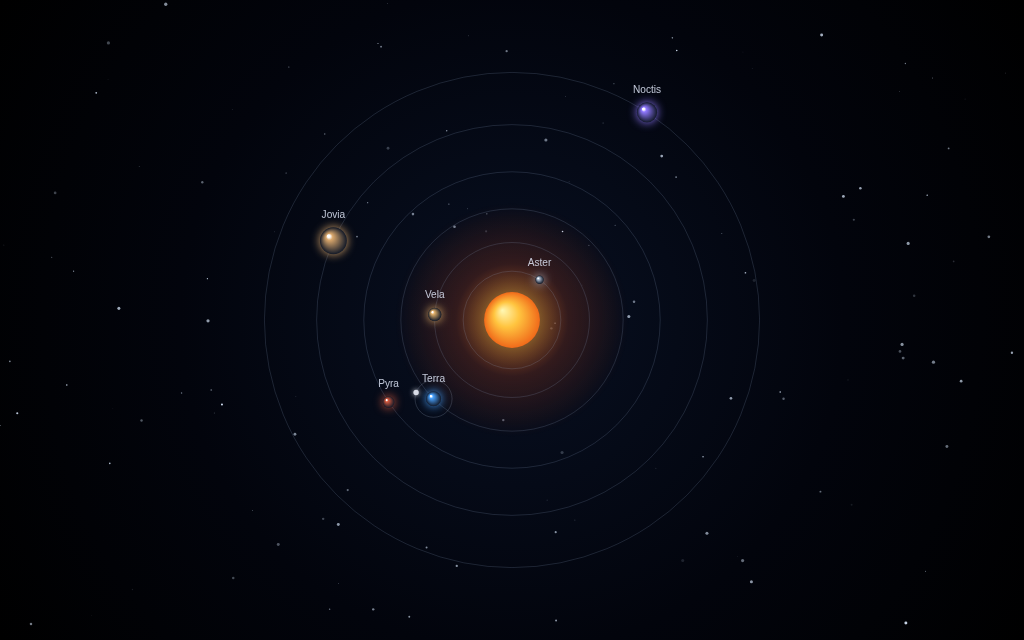

RUNS ✓planets named Noctis, Jovia, Vela, Pyra…
Renders beautifully — then invents its own planetary nomenclature. "A solar system" is defensible; the solar system was expected.

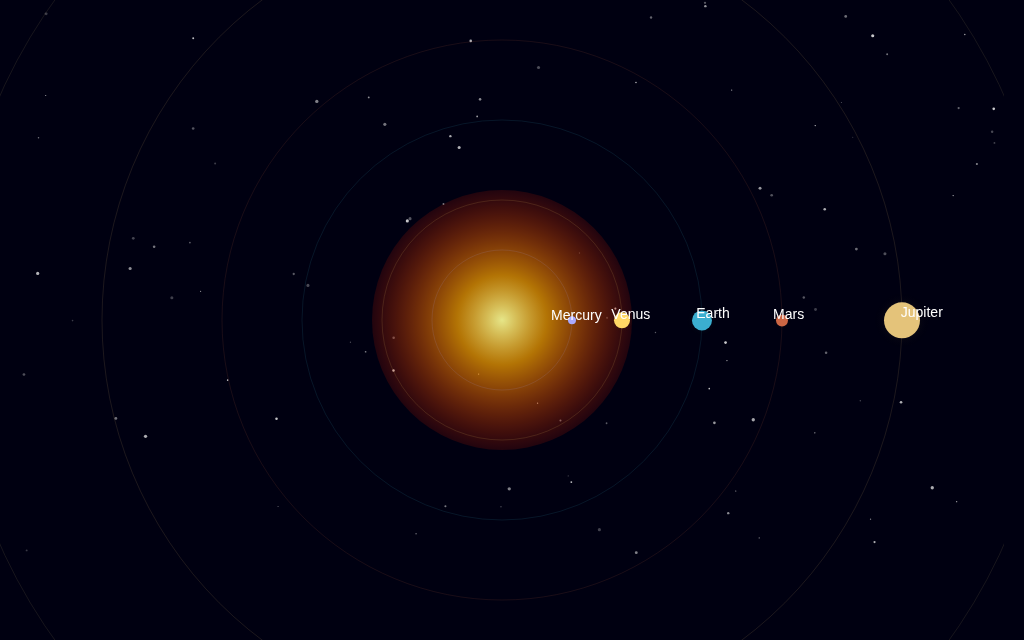

RUNS — BUTall planets aligned, sun oversized
Works, composes badly: a giant sun and a planetary conga line.
stray Cyrillic char inside a color string → SyntaxError
The overall runner-up ships a corrupted string literal — it even tried to .replace() its own typo at runtime. The parser got there first. Nobody is safe from Round 5.
parses fine, renders nothing
Silent failure — the hardest kind to debug, the easiest to rank.
SyntaxError — script never parses
Second parse error of the day for the local coder. Long files, fragile endings.
Frontier reference — outside the field
Answered the identical prompt outside the field, deliberately
unscored. Collected through a context-free agent rather than the harness the other answers used, so response times are
not comparable and are not shown.

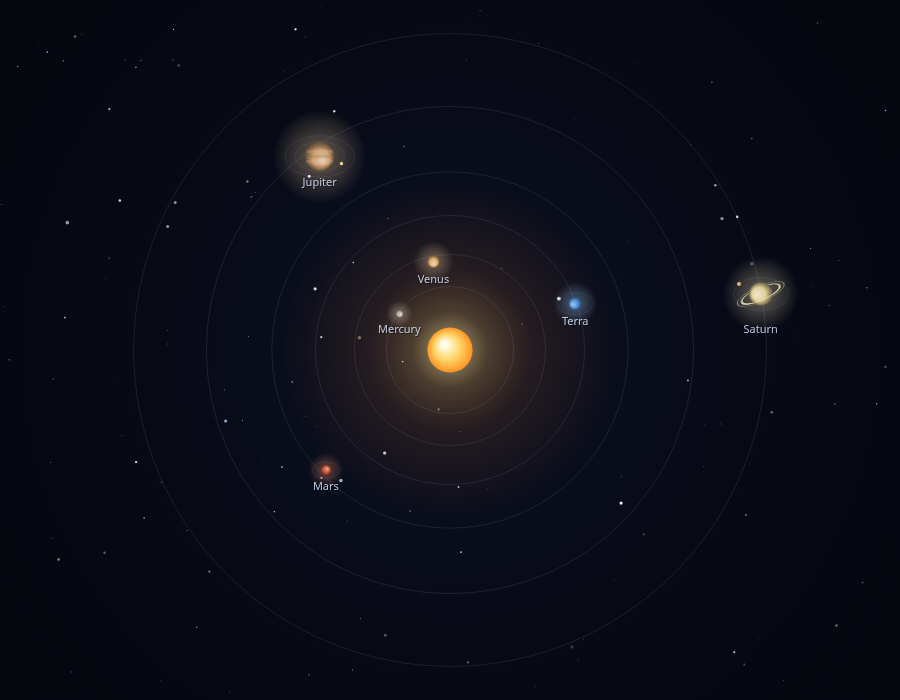

Claude Opus 5frontier reference
Show code
<!doctype html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>Solar System</title>
<style>
html, body {
margin: 0;
padding: 0;
height: 100%;
background: #05070f;
overflow: hidden;
}
canvas {
display: block;
width: 100vw;
height: 100vh;
}
</style>
</head>
<body>
<canvas id="sky"></canvas>
<script>
(function () {
"use strict";
var canvas = document.getElementById("sky");
var ctx = canvas.getContext("2d");
var W = 0, H = 0, DPR = 1;
var cx = 0, cy = 0, scale = 1;
// ---- Planet definitions -------------------------------------------------
// orbit / radius values are in "design units", scaled to the viewport.
var planets = [
{ name: "Mercury", orbit: 70, radius: 4.5, speed: 1.60, color: "#b9b0a4", glow: "#e6dccd", angle: 0.4 },
{ name: "Venus", orbit: 105, radius: 7.0, speed: 1.15, color: "#e0b070", glow: "#ffdca8", angle: 2.1 },
{ name: "Terra", orbit: 148, radius: 7.6, speed: 0.90, color: "#4d8fd6", glow: "#9fd0ff", angle: 4.0,
moons: [ { name: "Luna", orbit: 20, radius: 2.4, speed: 4.2, color: "#cfd3da", angle: 1.0 } ] },
{ name: "Mars", orbit: 196, radius: 6.0, speed: 0.68, color: "#c9563a", glow: "#ff9a78", angle: 0.9,
moons: [ { name: "Phobos", orbit: 15, radius: 1.6, speed: 5.6, color: "#9b8d84", angle: 2.6 } ] },
{ name: "Jupiter", orbit: 268, radius: 16.0, speed: 0.40, color: "#cfa070", glow: "#ffd9a8", angle: 3.3, banded: true,
moons: [
{ name: "Io", orbit: 27, radius: 2.2, speed: 3.1, color: "#e8d48a", angle: 0.2 },
{ name: "Europa", orbit: 38, radius: 2.0, speed: 2.2, color: "#dfe6ee", angle: 3.5 }
] },
{ name: "Saturn", orbit: 348, radius: 13.0, speed: 0.28, color: "#e3cf9b", glow: "#fff0c4", angle: 5.5, ring: true,
moons: [ { name: "Titan", orbit: 30, radius: 2.6, speed: 2.4, color: "#d9a86a", angle: 5.0 } ] }
];
// ---- Starfield ----------------------------------------------------------
var stars = [];
function buildStars() {
var count = Math.round((W * H) / 5200);
if (count < 140) count = 140;
if (count > 900) count = 900;
stars = [];
for (var i = 0; i < count; i++) {
var r = Math.random();
stars.push({
x: Math.random() * W,
y: Math.random() * H,
r: 0.35 + r * r * 1.5,
base: 0.25 + Math.random() * 0.6,
amp: 0.10 + Math.random() * 0.35,
phase: Math.random() * Math.PI * 2,
rate: 0.4 + Math.random() * 1.6,
hue: Math.random() < 0.18 ? (Math.random() < 0.5 ? "#bcd6ff" : "#ffe2c4") : "#ffffff"
});
}
}
function resize() {
DPR = Math.min(window.devicePixelRatio || 1, 2);
W = window.innerWidth;
H = window.innerHeight;
canvas.width = Math.round(W * DPR);
canvas.height = Math.round(H * DPR);
canvas.style.width = W + "px";
canvas.style.height = H + "px";
ctx.setTransform(DPR, 0, 0, DPR, 0, 0);
cx = W / 2;
cy = H / 2;
// Fit the outermost orbit (plus label room) inside the shorter axis.
scale = Math.min(W, H) / 2 / 385;
buildStars();
}
window.addEventListener("resize", resize);
// ---- Drawing helpers ----------------------------------------------------
function drawStars(t) {
for (var i = 0; i < stars.length; i++) {
var s = stars[i];
var a = s.base + s.amp * Math.sin(t * s.rate + s.phase);
if (a < 0.04) a = 0.04;
ctx.globalAlpha = a;
ctx.fillStyle = s.hue;
ctx.beginPath();
ctx.arc(s.x, s.y, s.r, 0, Math.PI * 2);
ctx.fill();
}
ctx.globalAlpha = 1;
}
function drawSun(t) {
var r = 26 * scale;
var pulse = 1 + 0.045 * Math.sin(t * 1.3);
var coronaR = r * 7.5 * pulse;
var corona = ctx.createRadialGradient(cx, cy, r * 0.4, cx, cy, coronaR);
corona.addColorStop(0.00, "rgba(255, 236, 170, 0.55)");
corona.addColorStop(0.18, "rgba(255, 190, 80, 0.26)");
corona.addColorStop(0.45, "rgba(255, 140, 40, 0.10)");
corona.addColorStop(1.00, "rgba(255, 120, 20, 0)");
ctx.fillStyle = corona;
ctx.beginPath();
ctx.arc(cx, cy, coronaR, 0, Math.PI * 2);
ctx.fill();
var body = ctx.createRadialGradient(
cx - r * 0.25, cy - r * 0.25, r * 0.1,
cx, cy, r * pulse
);
body.addColorStop(0.0, "#fffdf2");
body.addColorStop(0.5, "#ffd76a");
body.addColorStop(1.0, "#ff9422");
ctx.fillStyle = body;
ctx.beginPath();
ctx.arc(cx, cy, r * pulse, 0, Math.PI * 2);
ctx.fill();
}
function drawOrbitRings() {
ctx.lineWidth = 1;
for (var i = 0; i < planets.length; i++) {
var R = planets[i].orbit * scale;
ctx.strokeStyle = "rgba(150, 180, 230, 0.13)";
ctx.beginPath();
ctx.arc(cx, cy, R, 0, Math.PI * 2);
ctx.stroke();
}
}
function drawSphere(x, y, r, color, glow) {
if (glow) {
var g = ctx.createRadialGradient(x, y, r * 0.8, x, y, r * 3.2);
g.addColorStop(0, hexToRgba(glow, 0.30));
g.addColorStop(1, hexToRgba(glow, 0));
ctx.fillStyle = g;
ctx.beginPath();
ctx.arc(x, y, r * 3.2, 0, Math.PI * 2);
ctx.fill();
}
// Light comes from the sun: offset the highlight toward the centre.
var dx = cx - x, dy = cy - y;
var d = Math.sqrt(dx * dx + dy * dy) || 1;
var lx = x + (dx / d) * r * 0.38;
var ly = y + (dy / d) * r * 0.38;
var grad = ctx.createRadialGradient(lx, ly, r * 0.08, x, y, r);
grad.addColorStop(0, lighten(color, 0.45));
grad.addColorStop(0.55, color);
grad.addColorStop(1, darken(color, 0.55));
ctx.fillStyle = grad;
ctx.beginPath();
ctx.arc(x, y, r, 0, Math.PI * 2);
ctx.fill();
}
function drawBands(x, y, r, color) {
ctx.save();
ctx.beginPath();
ctx.arc(x, y, r, 0, Math.PI * 2);
ctx.clip();
ctx.globalAlpha = 0.22;
for (var i = -2; i <= 2; i++) {
ctx.fillStyle = (i % 2 === 0) ? darken(color, 0.4) : lighten(color, 0.35);
ctx.fillRect(x - r, y + i * r * 0.36 - r * 0.11, r * 2, r * 0.22);
}
ctx.restore();
ctx.globalAlpha = 1;
}
function drawSaturnRing(x, y, r, tilt) {
ctx.save();
ctx.translate(x, y);
ctx.rotate(-0.42);
ctx.scale(1, 0.30);
ctx.lineWidth = Math.max(1.2, r * 0.20);
ctx.strokeStyle = "rgba(240, 222, 178, 0.75)";
ctx.beginPath();
ctx.arc(0, 0, r * 1.75, 0, Math.PI * 2);
ctx.stroke();
ctx.lineWidth = Math.max(0.8, r * 0.10);
ctx.strokeStyle = "rgba(255, 244, 214, 0.45)";
ctx.beginPath();
ctx.arc(0, 0, r * 2.15, 0, Math.PI * 2);
ctx.stroke();
ctx.restore();
}
function drawLabel(text, x, y, r, color) {
ctx.font = "500 " + Math.max(9, Math.round(11 * Math.min(1.15, scale * 1.05))) + "px ui-sans-serif, system-ui, -apple-system, 'Segoe UI', Roboto, sans-serif";
ctx.textAlign = "center";
ctx.textBaseline = "top";
var ly = y + r + 6;
ctx.fillStyle = "rgba(0, 0, 0, 0.55)";
ctx.fillText(text, x + 1, ly + 1);
ctx.fillStyle = color;
ctx.fillText(text, x, ly);
}
// ---- Small colour utilities --------------------------------------------
function parseHex(hex) {
var h = hex.replace("#", "");
if (h.length === 3) h = h[0] + h[0] + h[1] + h[1] + h[2] + h[2];
return [parseInt(h.substr(0, 2), 16), parseInt(h.substr(2, 2), 16), parseInt(h.substr(4, 2), 16)];
}
function hexToRgba(hex, a) {
var c = parseHex(hex);
return "rgba(" + c[0] + "," + c[1] + "," + c[2] + "," + a + ")";
}
function lighten(hex, amt) {
var c = parseHex(hex);
return "rgb(" +
Math.round(c[0] + (255 - c[0]) * amt) + "," +
Math.round(c[1] + (255 - c[1]) * amt) + "," +
Math.round(c[2] + (255 - c[2]) * amt) + ")";
}
function darken(hex, amt) {
var c = parseHex(hex);
return "rgb(" +
Math.round(c[0] * (1 - amt)) + "," +
Math.round(c[1] * (1 - amt)) + "," +
Math.round(c[2] * (1 - amt)) + ")";
}
// ---- Main loop ----------------------------------------------------------
var last = 0;
var t = 0;
function frame(now) {
if (!last) last = now;
var dt = (now - last) / 1000;
last = now;
if (dt > 0.1) dt = 0.1; // clamp after tab-switches
t += dt;
ctx.fillStyle = "#05070f";
ctx.fillRect(0, 0, W, H);
// subtle galactic haze
var haze = ctx.createRadialGradient(cx, cy, 0, cx, cy, Math.max(W, H) * 0.7);
haze.addColorStop(0, "rgba(30, 40, 80, 0.35)");
haze.addColorStop(1, "rgba(5, 7, 15, 0)");
ctx.fillStyle = haze;
ctx.fillRect(0, 0, W, H);
drawStars(t);
drawOrbitRings();
drawSun(t);
for (var i = 0; i < planets.length; i++) {
var p = planets[i];
p.angle += p.speed * dt * 0.6;
var R = p.orbit * scale;
var pr = Math.max(2, p.radius * scale);
var px = cx + Math.cos(p.angle) * R;
var py = cy + Math.sin(p.angle) * R * 0.94; // gentle perspective squash
if (p.ring) drawSaturnRing(px, py, pr);
drawSphere(px, py, pr, p.color, p.glow);
if (p.banded) drawBands(px, py, pr, p.color);
if (p.ring) {
// front half of the ring, drawn over the body
ctx.save();
ctx.translate(px, py);
ctx.rotate(-0.42);
ctx.scale(1, 0.30);
ctx.lineWidth = Math.max(1.2, pr * 0.20);
ctx.strokeStyle = "rgba(240, 222, 178, 0.75)";
ctx.beginPath();
ctx.arc(0, 0, pr * 1.75, 0.15, Math.PI - 0.15);
ctx.stroke();
ctx.restore();
}
if (p.moons) {
for (var m = 0; m < p.moons.length; m++) {
var mo = p.moons[m];
mo.angle += mo.speed * dt * 0.6;
var mr = Math.max(1.2, mo.radius * scale);
var moR = Math.max(pr + mr + 3, mo.orbit * scale);
var mx = px + Math.cos(mo.angle) * moR;
var my = py + Math.sin(mo.angle) * moR * 0.6;
ctx.strokeStyle = "rgba(170, 195, 235, 0.12)";
ctx.lineWidth = 1;
ctx.save();
ctx.translate(px, py);
ctx.scale(1, 0.6);
ctx.beginPath();
ctx.arc(0, 0, moR, 0, Math.PI * 2);
ctx.stroke();
ctx.restore();
drawSphere(mx, my, mr, mo.color, null);
}
}
drawLabel(p.name, px, py, pr + (p.ring ? pr * 1.1 : 0), "rgba(214, 228, 255, 0.85)");
}
requestAnimationFrame(frame);
}
resize();
requestAnimationFrame(frame);
})();
</script>
</body>
</html>
