<think>

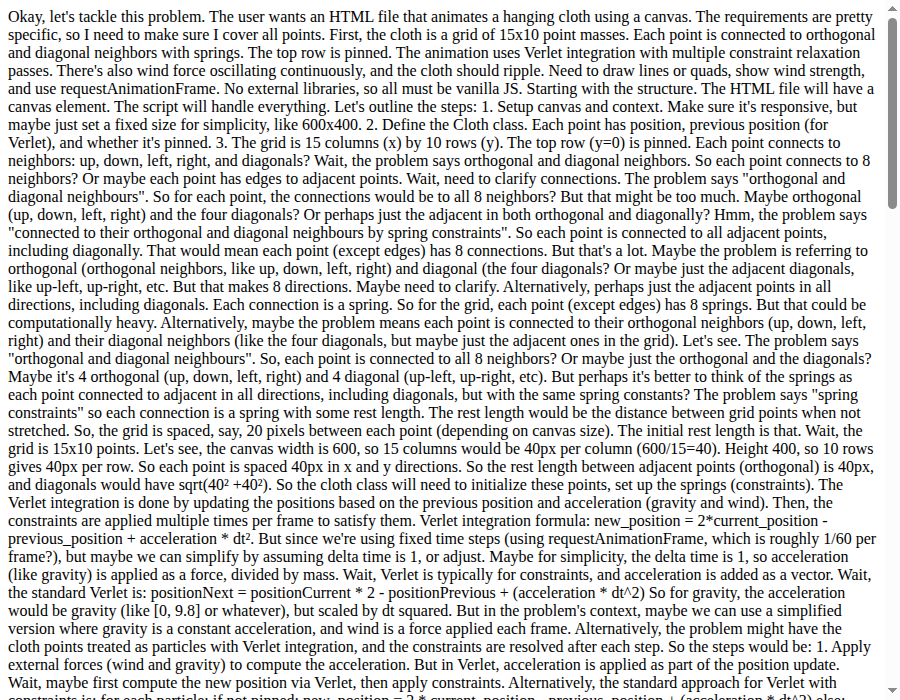

Okay, let's tackle this problem. The user wants an HTML file that animates a hanging cloth using a canvas. The requirements are pretty specific, so I need to make sure I cover all points.
First, the cloth is a grid of 15x10 point masses. Each point is connected to orthogonal and diagonal neighbors with springs. The top row is pinned. The animation uses Verlet integration with multiple constraint relaxation passes. There's also wind force oscillating continuously, and the cloth should ripple. Need to draw lines or quads, show wind strength, and use requestAnimationFrame. No external libraries, so all must be vanilla JS.
Starting with the structure. The HTML file will have a canvas element. The script will handle everything. Let's outline the steps:
1. Setup canvas and context. Make sure it's responsive, but maybe just set a fixed size for simplicity, like 600x400.
2. Define the Cloth class. Each point has position, previous position (for Verlet), and whether it's pinned.
3. The grid is 15 columns (x) by 10 rows (y). The top row (y=0) is pinned. Each point connects to neighbors: up, down, left, right, and diagonals? Wait, the problem says orthogonal and diagonal neighbors. So each point connects to 8 neighbors? Or maybe each point has edges to adjacent points. Wait, need to clarify connections. The problem says "orthogonal and diagonal neighbours". So for each point, the connections would be to all 8 neighbors? But that might be too much. Maybe orthogonal (up, down, left, right) and the four diagonals? Or perhaps just the adjacent in both orthogonal and diagonally?
Hmm, the problem says "connected to their orthogonal and diagonal neighbours by spring constraints". So each point is connected to all adjacent points, including diagonally. That would mean each point (except edges) has 8 connections. But that's a lot. Maybe the problem is referring to orthogonal (orthogonal neighbors, like up, down, left, right) and diagonal (the four diagonals? Or maybe just the adjacent diagonals, like up-left, up-right, etc. But that makes 8 directions. Maybe need to clarify. Alternatively, perhaps just the adjacent points in all directions, including diagonals. Each connection is a spring.
So for the grid, each point (except edges) has 8 springs. But that could be computationally heavy. Alternatively, maybe the problem means each point is connected to their orthogonal neighbors (up, down, left, right) and their diagonal neighbors (like the four diagonals, but maybe just the adjacent ones in the grid). Let's see. The problem says "orthogonal and diagonal neighbours". So, each point is connected to all 8 neighbors? Or maybe just the orthogonal and the diagonals? Maybe it's 4 orthogonal (up, down, left, right) and 4 diagonal (up-left, up-right, etc). But perhaps it's better to think of the springs as each point connected to adjacent in all directions, including diagonals, but with the same spring constants? The problem says "spring constraints" so each connection is a spring with some rest length. The rest length would be the distance between grid points when not stretched.
So, the grid is spaced, say, 20 pixels between each point (depending on canvas size). The initial rest length is that. Wait, the grid is 15x10 points. Let's see, the canvas width is 600, so 15 columns would be 40px per column (600/15=40). Height 400, so 10 rows gives 40px per row. So each point is spaced 40px in x and y directions. So the rest length between adjacent points (orthogonal) is 40px, and diagonals would have sqrt(40² +40²).
So the cloth class will need to initialize these points, set up the springs (constraints). The Verlet integration is done by updating the positions based on the previous position and acceleration (gravity and wind). Then, the constraints are applied multiple times per frame to satisfy them.
Verlet integration formula: new_position = 2*current_position - previous_position + acceleration * dt². But since we're using fixed time steps (using requestAnimationFrame, which is roughly 1/60 per frame?), but maybe we can simplify by assuming delta time is 1, or adjust. Maybe for simplicity, the delta time is 1, so acceleration (like gravity) is applied as a force, divided by mass. Wait, Verlet is typically for constraints, and acceleration is added as a vector.
Wait, the standard Verlet is:
positionNext = positionCurrent * 2 - positionPrevious + (acceleration * dt^2)
So for gravity, the acceleration would be gravity (like [0, 9.8] or whatever), but scaled by dt squared. But in the problem's context, maybe we can use a simplified version where gravity is a constant acceleration, and wind is a force applied each frame.
Alternatively, the problem might have the cloth points treated as particles with Verlet integration, and the constraints are resolved after each step. So the steps would be:
1. Apply external forces (wind and gravity) to compute the acceleration.
But in Verlet, acceleration is applied as part of the position update. Wait, maybe first compute the new position via Verlet, then apply constraints.
Alternatively, the standard approach for Verlet with constraints is:
for each particle:
if not pinned:
new_position = 2 * current_position - previous_position + (acceleration * dt^2)
else:
new_position = current_position (or whatever the pin requires)
Then, apply constraints (springs) multiple times.
But in this case, the acceleration is from gravity and wind.
Wait, perhaps better to think of it as:
Each frame:
- Compute the acceleration (gravity + wind) for each particle.
- Update the position using Verlet:
new_pos = 2 * current_pos - prev_pos + acceleration * dt^2
- Then, apply constraints (springs) several times (multiple passes) to enforce the distances between connected points.
The wind is a continuous force. The problem says it's a small oscillating wind. So perhaps the force is sinusoidal over time. The wind strength is applied as a horizontal force, varying with sin(time) or something. The current wind strength is displayed, so maybe show a number in the canvas.
The problem says to draw the mesh as connected lines or shaded quads. Maybe lines are easier, connecting each point to its neighbors. Alternatively, quads could be drawn as triangles or rectangles, but lines might be simpler.
Let me outline the steps in code.
First, setup the canvas:
<canvas id="canvas"></canvas>
Then the script:
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
Set canvas size. Let's set 600x400, so in HTML:
<canvas id="canvas" width="600" height="400"></canvas>
Then the cloth class.
Cloth {
constructor() {
this.particles = [];
this.constraints = [];
this.width = 15; // columns
this.height = 10; // rows
this.spacing = 40; // so 600 /15=40, 400/10=40
// Initialize particles
for (var y=0; y<this.height; y++) {
for (var x=0; x<this.width; x++) {
let p = new Particle(x * this.spacing, y * this.spacing);
if (y ==0) p.pinned = true; // top row pinned
this.particles.push(p);
}
}
// Create constraints between all points and their neighbors
for (var i=0; i<this.particles.length; i++) {
var p = this.particles[i];
// Check all neighbors (orthogonal and diagonal)
for (var dx=-1; dx<=1; dx++) {
for (var dy=-1; dy<=1; dy++) {
if (dx ==0 && dy ==0) continue; // skip self
// find neighbor index
let neighborIndex = ...;
// calculate neighbor's position in the grid
// current x,y of p: x = (i % width), y = (i / width) |0
let x = i % this.width;
let y = (i / this.width)|0;
let nx =x + dx;
let ny = y + dy;
if (nx >=0 && nx < this.width && ny >=0 && ny < this.height) {
let neighborIndex = ny * this.width + nx;
this.constraints.push(new Constraint(p, this.particles[neighborIndex], this.spacing * Math.sqrt(dx*dx + dy*dy)));
}
}
}
}
}
}
Wait, but this would create constraints for all 8 directions, but each constraint is between the current particle and the neighbor. However, this would create duplicates because when i and j are neighbors, both (i,j) and (j,i) would be checked. To avoid duplicates, perhaps only check in one direction, e.g., only for dx <=0 or dy <=0, but that might be complicated. Alternatively, since constraints are bidirectional, maybe it's okay to have duplicates as each pair is added twice. Hmm. Alternatively, perhaps just connect each particle to its right and bottom neighbor, and diagonals, so that each connection is only once. Maybe this is manageable. Alternatively, the problem states that the constraints are between orthogonal and diagonal neighbors, so each particle is connected to all 8 neighbors, but in the code, when we loop over all dx and dy (from -1 to 1, excluding 0,0), then for each direction, we add the constraint if that neighbor exists. But each connection will be added twice (once from each particle). That's okay, but it's redundant. Alternatively, to prevent duplicates, but maybe it's not a big deal for a small grid.
But the problem says "connected to their orthogonal and diagonal neighbours". So each particle is connected to all adjacent particles in all 8 directions? That would be a lot of constraints. For 15x10 grid, each interior particle has 8 neighbors, so total constraints would be roughly (15-1)*(10-1)*8? Hmm, but maybe it's manageable.
Alternatively, the problem might have meant orthogonal (up, down, left, right) and diagonal (the four diagonals), but in the grid, each particle is connected to those. So each particle has up to 8 neighbors, but not sure if that's the case.
Alternatively, perhaps the problem means each particle is connected to orthogonal (non-diagonal) and diagonal neighbors. So for example, each particle is connected to the adjacent in all directions, including diagonally. So each connection is a spring with rest length of sqrt( (spacing)^2 + (spacing)^2 ) for diagonals. But in that case, the rest length would vary depending on direction.
Alternatively, perhaps the rest length for orthogonal connections is spacing (40) and diagonal is spacing*sqrt(2) (approx 56.56). That would make sense.
But when creating the constraints, the rest length can be computed based on dx and dy.
So in the code, for each dx and dy (from -1 to 1), except (0,0):
distance between neighbor and current is sqrt( dx^2 + dy^2 ) * spacing.
So the rest length is that distance.
So when creating the constraint between p and neighbor:
var dx = (nx - x);
var dy = (ny - y);
var restLength = this.spacing * Math.sqrt( (dx)^2 + (dy)^2 );
Wait, but dx and dy here are in grid steps (since nx is x + dx_grid, where dx_grid could be -1,0,1). So since each grid step is spacing in pixels, the actual rest length is spacing * sqrt(dx_grid² + dy_grid²).
So that's how the rest length is computed.
Now, the constraints array holds all the connections between particles.
Once that's setup, the simulation proceeds.
Now, Verlet integration:
In each step (each frame):
- Compute the acceleration (wind + gravity)
- Update each particle's position via Verlet.
- Apply constraints multiple times (relaxation passes) to enforce the spring constraints.
Gravity is a downward acceleration. Wind is a horizontal oscillating force.
So each particle has a force from wind and gravity.
But in Verlet, the acceleration is added to the position update.
Wait, the standard Verlet step is:
newPos = 2 * currPos - prevPos + acceleration * dt^2;
Assuming the acceleration is the net force divided by mass, but since we can assume mass=1 and dt fixed.
Assuming the time step is 1 (since delta time in requestAnimationFrame can vary, but for simplicity, let's assume dt=1 and acceleration is the force).
Wait, perhaps the problem allows us to simplify by using dt=1, so acceleration is just the net force (wind + gravity).
Alternatively, since the user just wants it to work, maybe we can set the gravity as a fixed value, like 0.5, and wind as varying.
So for each particle:
if not pinned:
new_pos = 2 * current_pos - previous_position + (gravity + wind_acceleration) * dt²
But since we can set dt to 1, then:
new_pos = 2*current - prev + acceleration.
Wait, perhaps the problem can be simplified by assuming delta squared is 1 (dt=1), so acceleration is added directly:
newPos = 2 * current - prev + acceleration;
where acceleration is (gravity + wind) applied as a vector.
Gravity is a vector (0, 0.5) perhaps. Wind is a horizontal sinusoidal force varying over time.
So, wind strength is a variable that oscillates, say between -0.1 and 0.1, and the actual force is wind_strength * some factor.
So, the wind_acceleration would be (wind_strength * some value, 0).
Now, the constraints are handled by relaxing each spring:
For each constraint between two particles:
the vector between them is current_pos_b - current_pos_a
the distance is the length of this vector.
the desired distance is the rest length (from when they were created)
the difference is (distance - restLength)/distance * 0.5 (some fraction)
then, each particle is moved towards/away from each other by this delta.
But the exact method depends on the constraint relaxation.
The standard approach for constraint relaxation with Verlet is to compute the current distance between two connected particles, then adjust their positions to meet the rest length.
The process for each constraint:
var a = constraint.p1;
var b = constraint.p2;
var dx = b.x - a.x;
var dy = b.y - a.y;
var dist = Math.sqrt(dx*dx + dy*dy);
var delta = (dist - constraint.restLength) / dist;
var adjust = delta * 0.5; // half of the delta for each particle.
// move a and b towards each other (if dist > restLength) or away
a.x -= dx * adjust;
a.y -= dy * adjust;
b.x += dx * adjust;
b.y += dy * adjust;
But this is for a single constraint. We have to apply this for every constraint multiple times per frame to let the constraints propagate.
Typically, multiple passes (like 3-5) are done per frame to better satisfy all constraints.
So, in code:
function applyConstraints() {
for (var i=0; i<this.constraints.length; i++) {
var constraint = this.constraints[i];
var a = constraint.a;
var b = constraint.b;
// if either is pinned, skip (since pinned particles shouldn't move)
if (a.pinned || b.pinned) continue;
var dx = b.x - a.x;
var dy = b.y - a.y;
var dist = Math.sqrt(dx*dx + dy*dy);
if (dist ==0) continue; // prevent division by zero
var rest = constraint.restLength;
var delta = (dist - rest) / dist;
// adjust both particles
var adjust = delta * 0.5; // half the delta to each
a.x -= dx * adjust;
a.y -= dy * adjust;
b.x += dx * adjust;
b.y += dy * adjust;
}
}
But this would be applied multiple times (like 10 passes?), but each pass goes through all constraints. Alternatively, multiple relaxation passes (like 3-5 times).
Now, the steps for each frame:
1. Update positions via Verlet (applying gravity and wind):
for each particle:
if (!p.pinned) {
var oldPos = p.prevPos;
var newPos = {
x: 2 * p.pos.x - oldPos.x + (wind.x + gravity.x),
y: 2 * p.pos.y - oldPos.y + (wind.y + gravity.y)
};
p.prevPos = p.pos;
p.pos = newPos;
}
Wait, but wind and gravity are vectors. So need to track velocity or acceleration. Wait, in the Verlet step, the acceleration is added as (acceleration * dt²), but if dt is 1, then acceleration is added directly. So, the acceleration is (gravity + wind). So the code would be:
var ax = gravity.x + wind.x;
var ay = gravity.y + wind.y;
newPos.x = 2 * current.x - prev.x + ax;
newPos.y = 2 * current.y - prev.y + ay;
Thus, in code:
for each particle:
if (p.pinned) continue;
var ax = gravity.x + wind.x;
var ay = gravity.y + wind.y;
var newx = 2*p.pos.x - p.prev.x + ax;
var newy = 2*p.pos.y - p.prev.y + ay;
p.prev.x = p.pos.x;
p.pos.x = newx;
Similarly for y.
Wait, but in code:
assuming the particle has a position and previous position:
p.pos: current position
p.prevPos: previous position (before current step)
So after the Verlet step:
new_x = 2 * p.pos.x - p.prevPos.x + ax;
new_y = 2 * p.pos.y - p.prevPos.y + ay;
then set p.prevPos to p.pos, then p.pos to new_x/y.
Wait, the order is:
prevPos is the position from the previous frame, before updating.
After computing new_x and new_y,
p.prevPos becomes the current pos (before update),
then p.pos becomes new_x/y.
Wait, maybe:
temp_prev = p.prev;
new_x = ...;
p.prev = p.pos;
p.pos = new_x;
Yes.
So in code:
for each particle:
if(p.pinned) continue;
// compute new position via Verlet
var ax = wind.x + gravity.x;
var ay = wind.y + gravity.y;
var newx = 2 * p.pos.x - p.prev.x + ax;
var newy = 2 * p.pos.y - p.prev.y + ay;
// update previous and current
p.prev.x = p.pos.x;
p.prev.y = p.pos.y;
p.pos.x = newx;
p.pos.y = newy;
Then, after this, apply constraints multiple times.
Then, after all that, draw the particles connected by constraints.
The wind's strength should be an oscillating value. Let's say it's controlled by a sine wave:
var time = currentAnimationFrame * timeStep;
var wind_strength = Math.sin(time * wind_frequency) * wind_amplitude;
where wind_amplitude is the maximum strength (like 0.1), and frequency controls how fast it oscillates.
Alternatively, since time can be tracked via the frame count.
Alternatively, just use a simple oscillation with a time variable that increments each frame.
Now, the drawing part:
for each constraint, draw a line between the two particles' positions.
Now, putting all together.
Now, let's structure this in code steps.
First, define the Particle class:
class Particle {
constructor(x, y) {
this.pos = {x: x, y: y};
this.prev = {x: x, y: y}; // previous position
this.pinned = false;
}
}
Constraint class:
class Constraint {
constructor(a, b, restLength) {
this.a = a;
this.b = b;
this.restLength = restLength;
}
}
Now, the Simulation class:
class Simulation {
constructor() {
this.particles = [];
this.constraints = [];
this.createGrid(); // create grid of particles with constraints
this.gravity = {x:0, y: 0.5};
this.wind = {x:0, y:0};
this.wind_amplitude = 0.1;
this.wind_freq = 0.5; // adjust this for oscillation speed
this.time = 0;
}
createGrid() {
// create a 15x10 grid (assuming width 15, height 10)
var spacing = 20; // pixel spacing
for (var y=0; y<10; y++) {
for (var x=0; x<15; x++) {
var px = x * spacing;
var py = y * spacing;
var p = new Particle(px, py);
this.particles.push(p);
}
}
// connect each particle to all 8 neighbors (diagonal included)
for (var y=0; y<10; y++) {
for (var x=0; x<15; x++) {
var p = this.particles[y*15 + x];
for (var dy=-1; dy<=1; dy++) {
for (var dx=-1; dx<=1; dx++) {
if (dx ==0 && dy ==0) continue; // skip self
var nx = x + dx;
var ny = y + dy;
if (nx >=0 && nx <15 && ny >=0 && ny <10) {
var other = this.particles[ny*15 + nx];
// compute rest length
var dx_grid = dx;
var dy_grid = dy;
var restLength = spacing * Math.sqrt( dx_grid*dx_grid + dy_grid*dy_grid );
this.constraints.push( new Constraint(p, other, restLength) );
}
}
}
}
}
// pin the first row? Or maybe not, let them all move except some?
// maybe pin the top row or bottom row to prevent the whole thing from flying away.
// let's pin the top row (y=0):
for (var x=0; x<15; x++) {
this.particles[x].pinned = true;
}
}
update() {
// compute wind
this.time += 0.1; // increment time for wind simulation
var wind_angle = Math.PI / 2; // horizontal wind
this.wind.x = this.wind_amplitude * Math.sin( this.time * this.wind_freq );
this.wind.y = 0;
// apply Verlet integration
for (var i=0; i<this.particles.length; i++) {
var p = this.particles[i];
if (p.pinned) continue;
var ax = this.gravity.x + this.wind.x;
var ay = this.gravity.y + this.wind.y;
// compute new position
var newx = 2 * p.pos.x - p.prev.x + ax;
var newy = 2 * p.pos.y - p.prev.y + ay;
// update positions
p.prev.x = p.pos.x;
p.prev.y = p.pos.y;
p.pos.x = newx;
p.pos.y = newy;
}
// apply constraints multiple times for relaxation
for (var pass=0; pass<5; pass++) {
for (var i=0; i<this.constraints.length; i++) {
var c = this.constraints[i];
var a = c.a;
var b = c.b;
if (a.pinned || b.pinned) continue;
var dx = b.pos.x - a.pos.x;
var dy = b.pos.y - a.pos.y;
var dist = Math.sqrt( dx*dx + dy*dy );
if (dist ==0) continue;
var rest = c.restLength;
var delta = (dist - rest)/dist;
var adjust = delta * 0.5;
a.pos.x -= dx * adjust;
a.pos.y -= dy * adjust;
b.pos.x += dx * adjust;
b.pos.y += dy * adjust;
}
}
}
draw(ctx) {
ctx.clearRect(0,0, canvas.width, canvas.height);
ctx.beginPath();
// draw all constraints as lines between particles
for (var i=0; i<this.constraints.length; i++) {
var c = this.constraints[i];
ctx.moveTo(c.a.pos.x, c.a.pos.y);
ctx.lineTo(c.b.pos.x, c.b.pos.y);
}
ctx.stroke();
// draw particles as small dots
ctx.fillStyle = 'black';
for (var i=0; i<this.particles.length; i++) {
var p = this.particles[i];
ctx.beginPath();
ctx.arc(p.pos.x, p.pos.y, 2, 0, 2*Math.PI);
ctx.fill();
}
}
}
Then, in the main loop:
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
var sim = new Simulation();
function animate() {
sim.update();
sim.draw(ctx);
requestAnimationFrame(animate);
}
animate();
But we need to set the canvas size appropriately. Let's set it to 15*spacing (say spacing=20) so width=300, height=200.
canvas.width = 15*20;
canvas.height = 10*20;

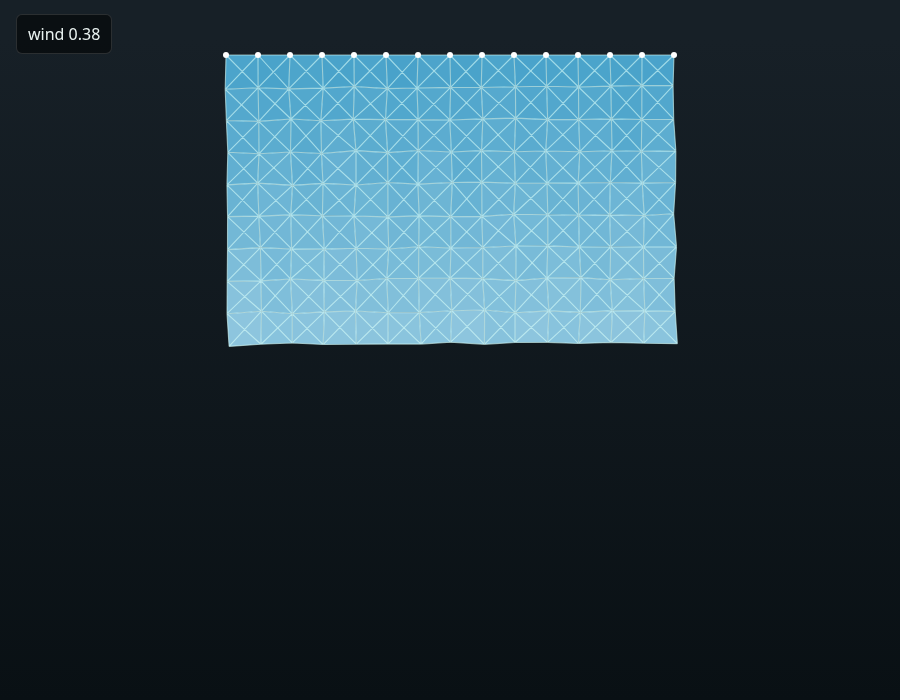

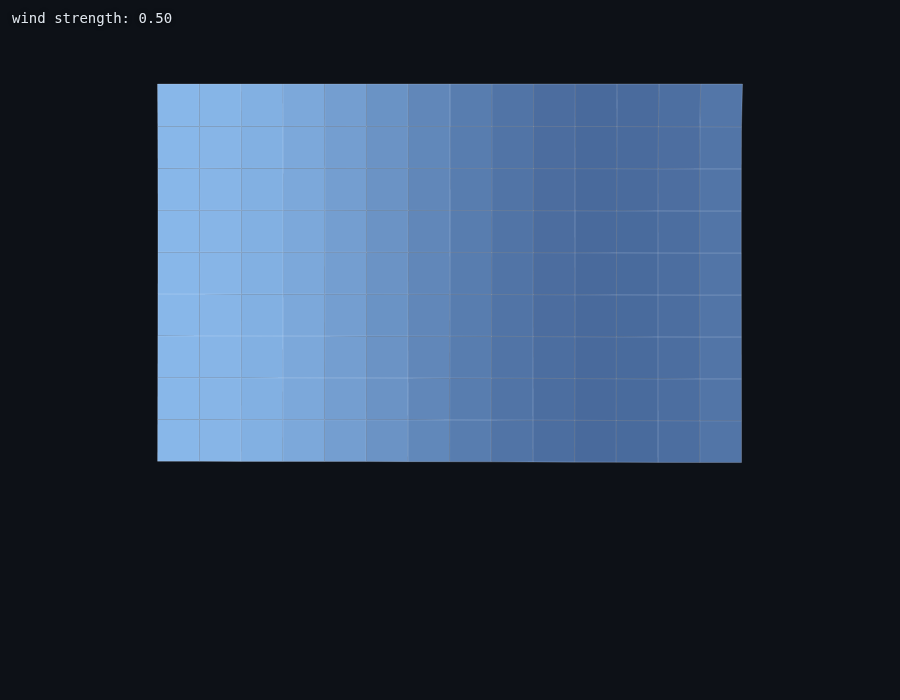

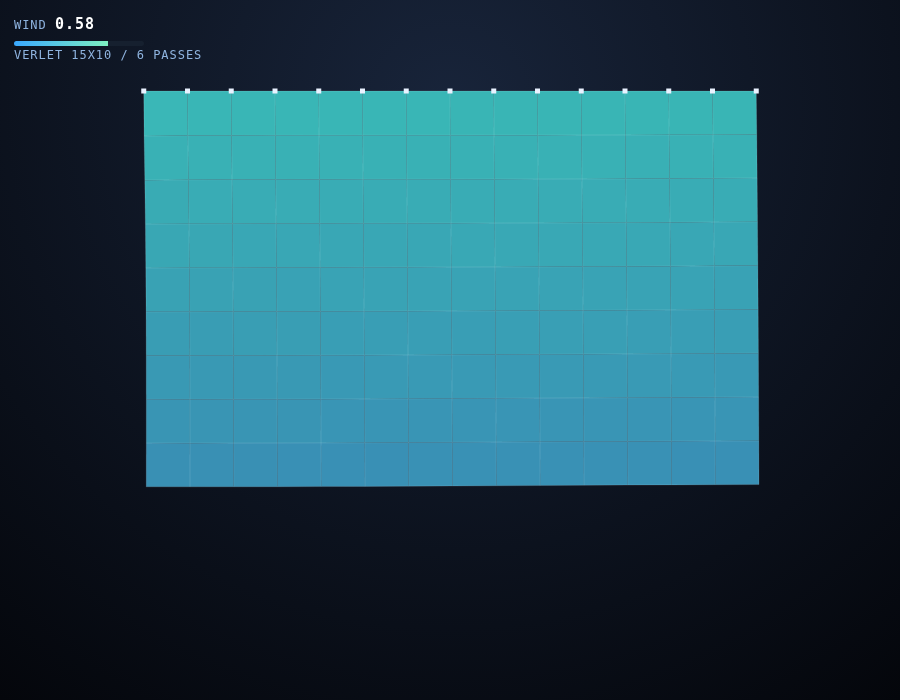

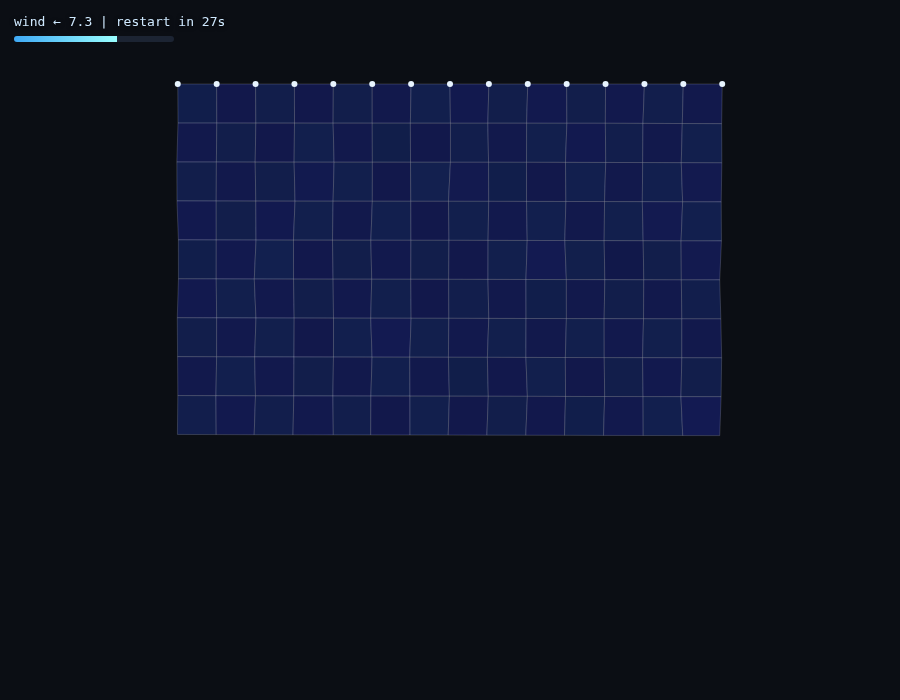

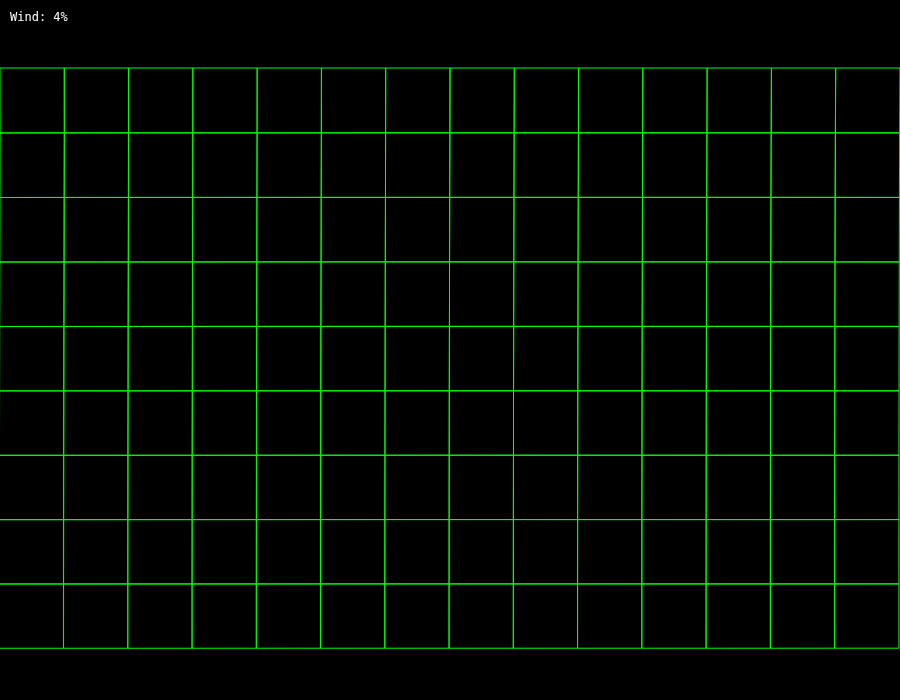

Putting all together, this should create a grid of particles connected by springs, with the top row pinned, gravity pulling down, and wind oscillating horizontally.
The key points here are:
- The grid is created with particles connected to all 8 neighbors, with rest lengths adjusted for diagonal connections.
- Verlet integration is used with gravity and wind acceleration.
- Multiple constraint relaxation passes are done to resolve the springs.
- The top row is pinned to prevent the structure from falling off the screen.
Testing this code might require adjustments, like setting the canvas size correctly and tweaking parameters such as gravity strength, wind_amplitude, and wind_freq for better visualization.
Additionally, in the code above, when creating the constraints, each pair of particles is connected twice (once from each side). To avoid duplicate constraints, perhaps we can only create a constraint between a particle and the particles to its right and below (or some direction), but since the constraints are bidirectional, it's manageable, even if redundant.
Another possible issue is the initial distance between particles and the rest length. The restLength is computed based on the grid steps, which should be correct.
Finally, the wind is applied via a sine wave, so the amplitude can be adjusted. The frequency controls how fast the wind oscillates. The code uses the 'time' variable incremented each frame, scaled by a factor.
This should create a simulation where the grid oscillates horizontally due to wind and sags under gravity, with the top pinned in place.
